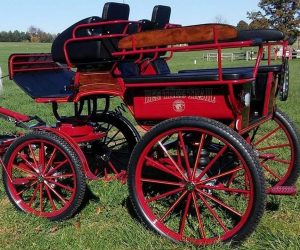

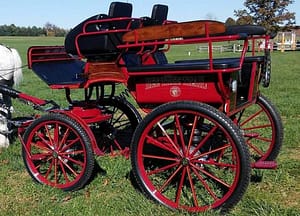

Max IV Bee Tree Trail Cropped Resized
Max IV BTT Large Draft Trainer


Max IV BTT Large Draft Trainer
16 to 19 hands – Pair to 8-Up Hitch

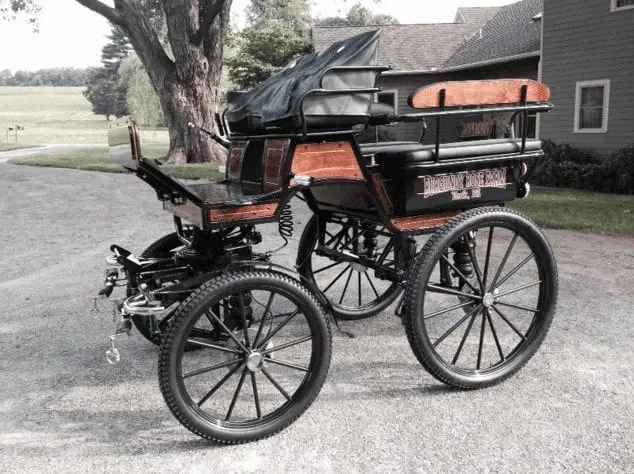

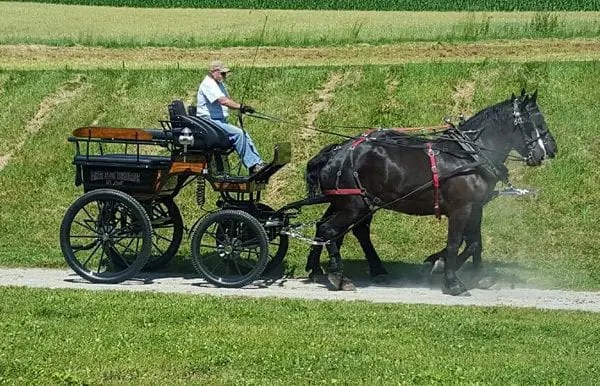

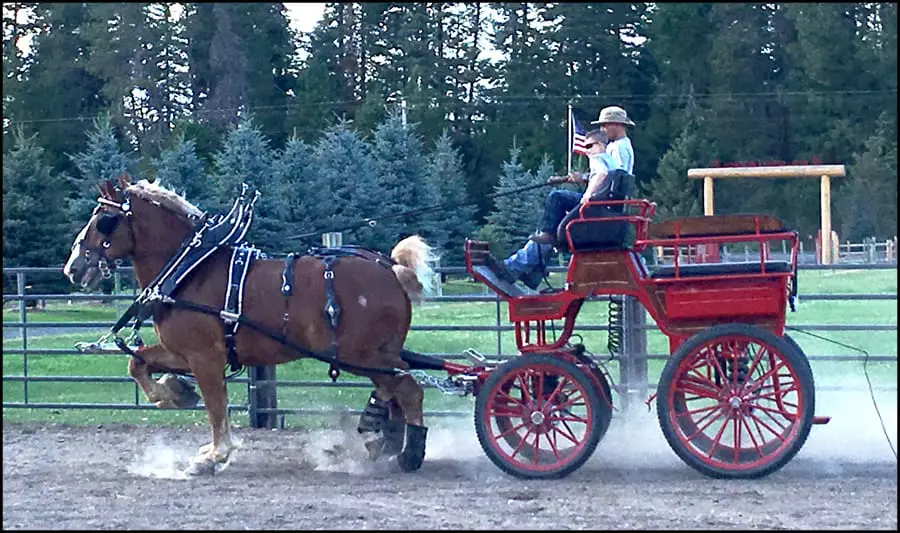

The Max IV BTT is our training & pleasure carriage  built for large draft horses from 16 to 19 hands plus. The Max IV BTT was designed in cooperation with NHF Dealer, Dave Rohrbach of  Bee Tree Trail Carriage Company, to provide the ultimate in a training & pleasure carriage for draft hitches. Each Max IV BTT is custom designed to fit both horses and driver. An important design feature is the height from the ground to the top of the driver’s wedge seat,  72 inches or more, which provides the visibility needed to see the leaders even in an 8-up hitch. Equipped with trailing arm air suspension and pneumatic tires the cross country ride is unbeatable.

(Approx. weight 1,250 lbs. without pole)

  • Track width: Front 160cm (63 inches) Rear 170 cm (67 inch) track

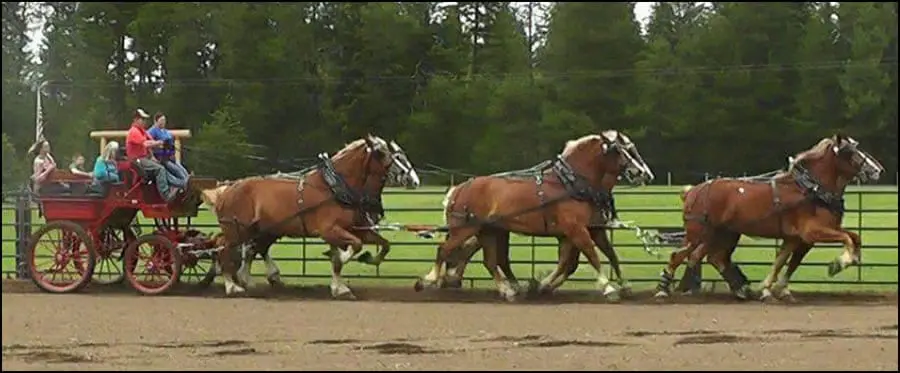

  • Height to the top of the drivers wedge 72″ or more to provide much needed visibility to see your leaders in an 8-up hitch.
  • Custom measurements: height from ground to top of drivers wedge, distance on the floor from the box to toe board, height from the floor to the top of the box, and inside dimension of drivers bucket seat
  • Adjustable Bucket seats for driver & co-driver and step through passage for easy access from the rear to front

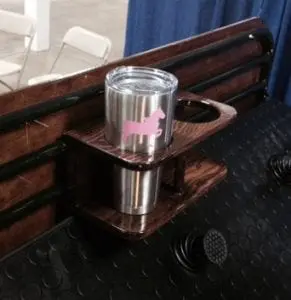

  • Cup holder – inside of front dash
  • Wagonette rear seats 120cm (47 inches)

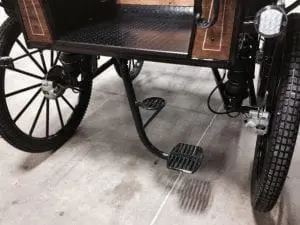

  • Rear step: choice of fold under (swing step) or wide fold up, both to allow for more room in trailer.

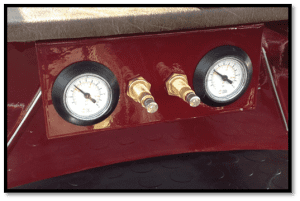

  • Trailing Arm Air Suspension

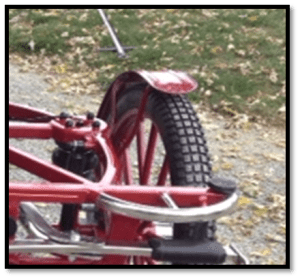

  • Wheels with pneumatic tires- 29” x 3.50 front 36” x 3.75 rear and front fenders
  • Extended front “knurled” hubs and rubber step on splinter bar for easy entry.
  • Brakes; front & rear, Bosch calipers with stainless rotors, hydraulic park brake and hand crank park brake
  • Front & rear hydraulic brakes with Bosch calipers and stainless steel rotors
  • Delayed steering

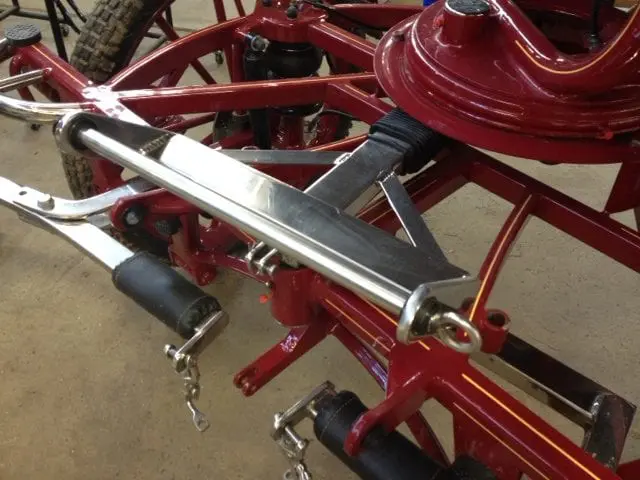

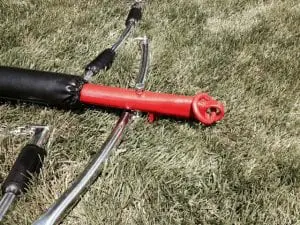

  • Pole: adjustable,  spring mounted & padded  pole with fixed head for  straps
  • Choice of wood stain, standard paint, pinstriping, upholstery & stitching colors

Please contact us for custom upgrade availability and pricing.

Available as optional upgrades for an additional cost:

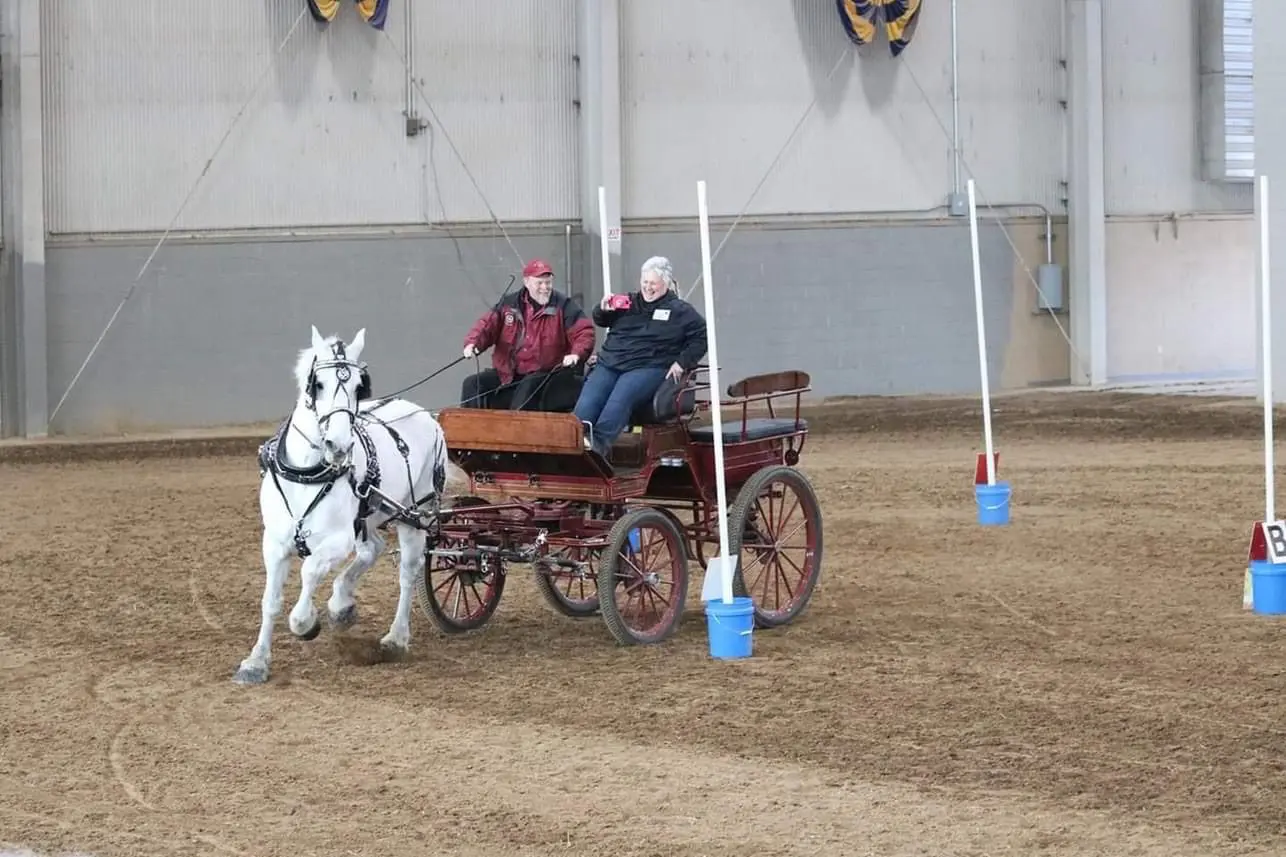

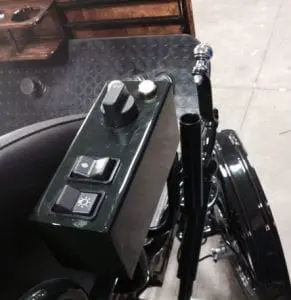

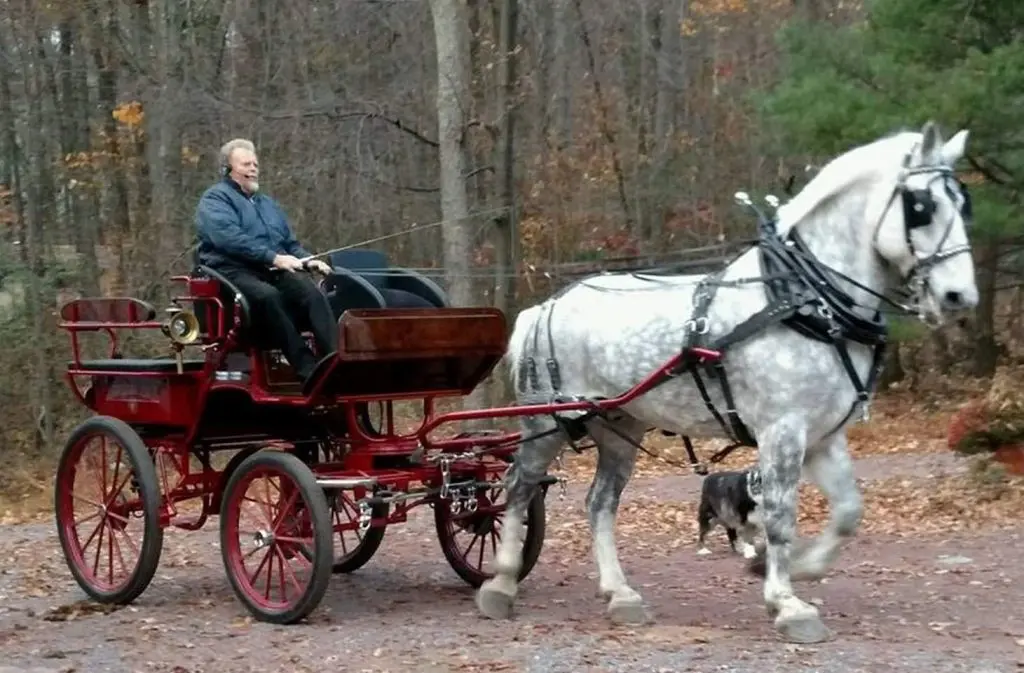

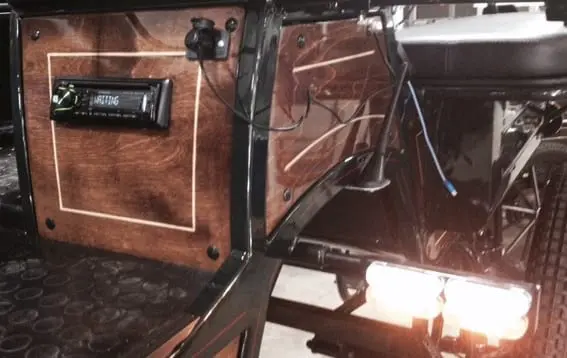

Roof, U-Shaft, LED or Standard Lighting Packages, Additional Horse Fittings, and More

2023 Max IV BTT Upgraded Wagonette


Upgrade Includes Trailing Arm Suspension Front & Back

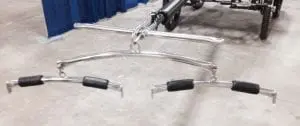

Box Seat Passage, Co-Driver Seat, Pole,  Spreader Bar


Snap Shackles, Hydraulic parking brake, Choice of Flat or Wedge Seats

NHF Dealer & Draft Specialist, Dave Rohrbach

Contact us for custom-fitted carriage quote! We will expertly match features tailored to you and your equine partners’ needs.

*Carriage prices are subject to change and do not include delivery to final destination from Windsor, SC, or State sales tax, where applicable.
