Max V Training Carriage

Many trainers have asked if a bench seat was available on the Max IV.  They want to be able to slide to the middle when training to get a better look at their team.  Training in a  carriage similar to their hitch wagon would be great but they also like the step through passage for easy access from back to front.

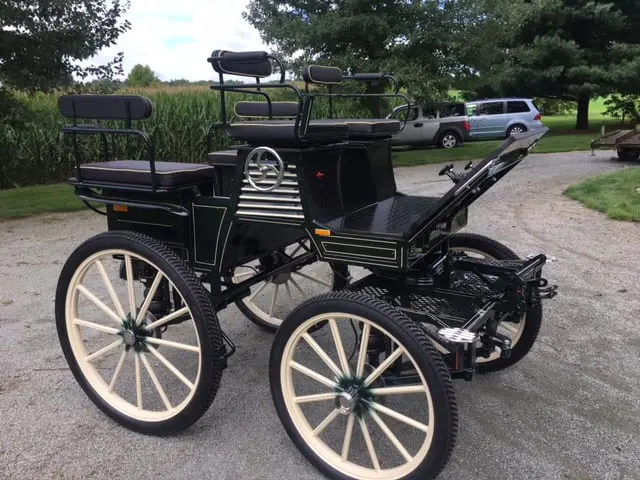

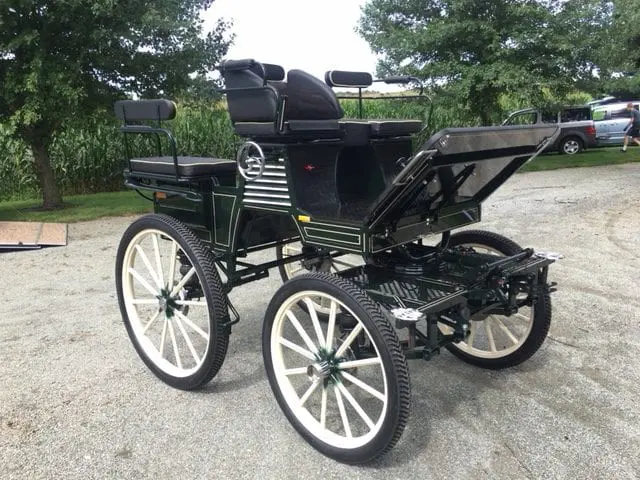

NHF proudly offers the MAX V  featuring toe board and bench seat like your hitch wagon with a removable driver’s wedge and removable center cushion so you can still have the step through passage!

for 16.0 to 19 + hands   weight w/o pole 1050 to 1250 lbs without the pole. Height from the ground to the top of the drivers wedge 72″

Starting in the $10,000’s

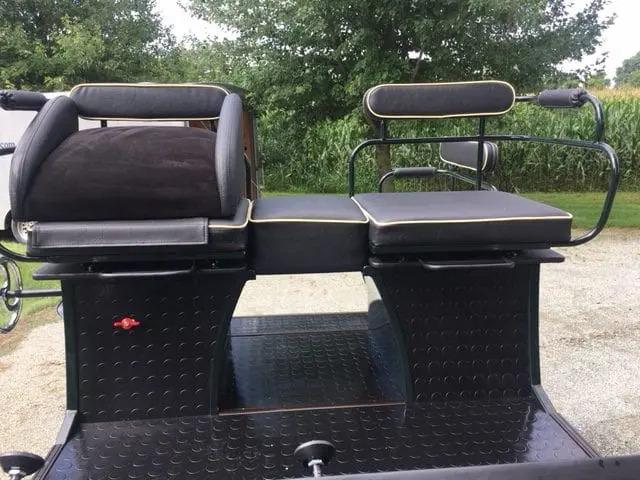

  • Flat platform “hitch wagon type” seat with removable drivers wedge and center cushion over the step thru passage.
  • Track 160 cm (63″)rear 150 cm front (59″)  optional 170/160 tack available
  • Height to the top of the drivers wedge seat 72″  increased height is available
  • Trailing arm air suspension (Click here for description)
  • Bosch Calipers (front & rear) with with stainless rotors, hydraulic park brake & Stainless wheel mechanical park brake
  • Polished Stainless:

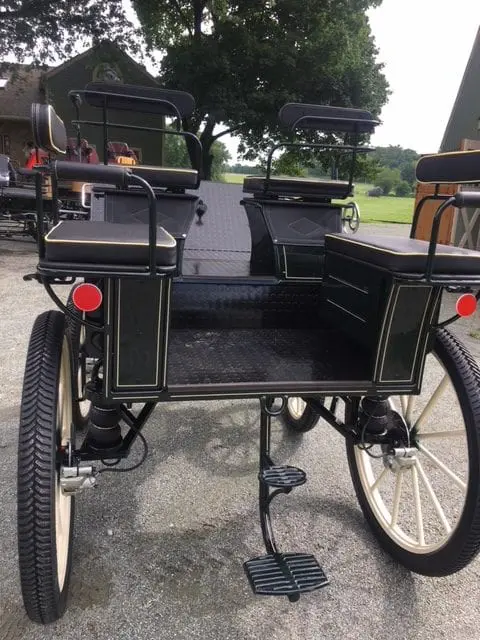

  • Rear facing seats with storage compartments  hinged on top 70 cm (28″) rear  seatsWheels with pneumatic tires 29″x 3.50 front, 36″ x 3.75 rear with standard hubs, extended in front,  flush rear

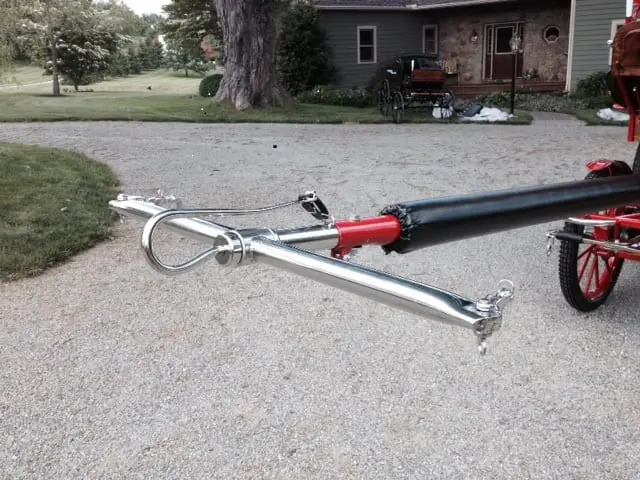

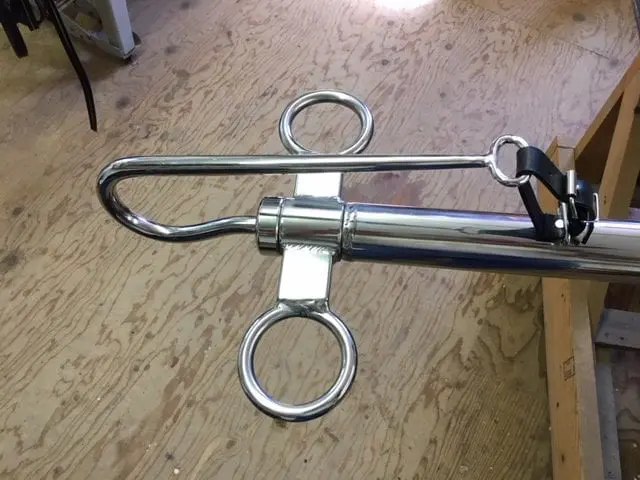

  • Pole: Adjustable, padded &  suspended pole with swivel pole head with yoke (spreader bar) & crab OR rings and crab for chains and spreader bar

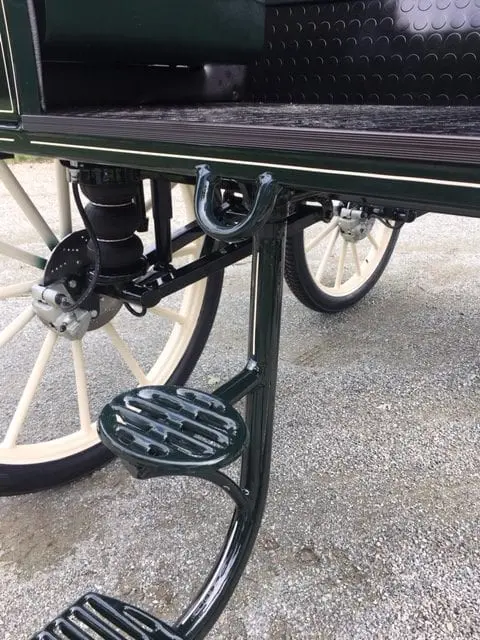

  • Rear swing step (turns under to shorten for storage) and D ring to attach drag weight

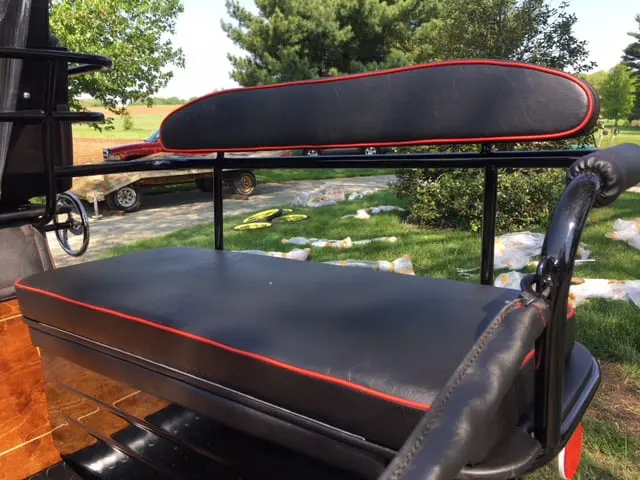

  • Choice of leatherette upholstery with stitching and Bizra trim to match striping color.

Contact us for custom-fitted carriage quote! We will expertly match features tailored to you and your equine partners’ needs.

*Carriage prices are subject to change and do not include delivery to final destination from Windsor, SC, or State sales tax, where applicable.
