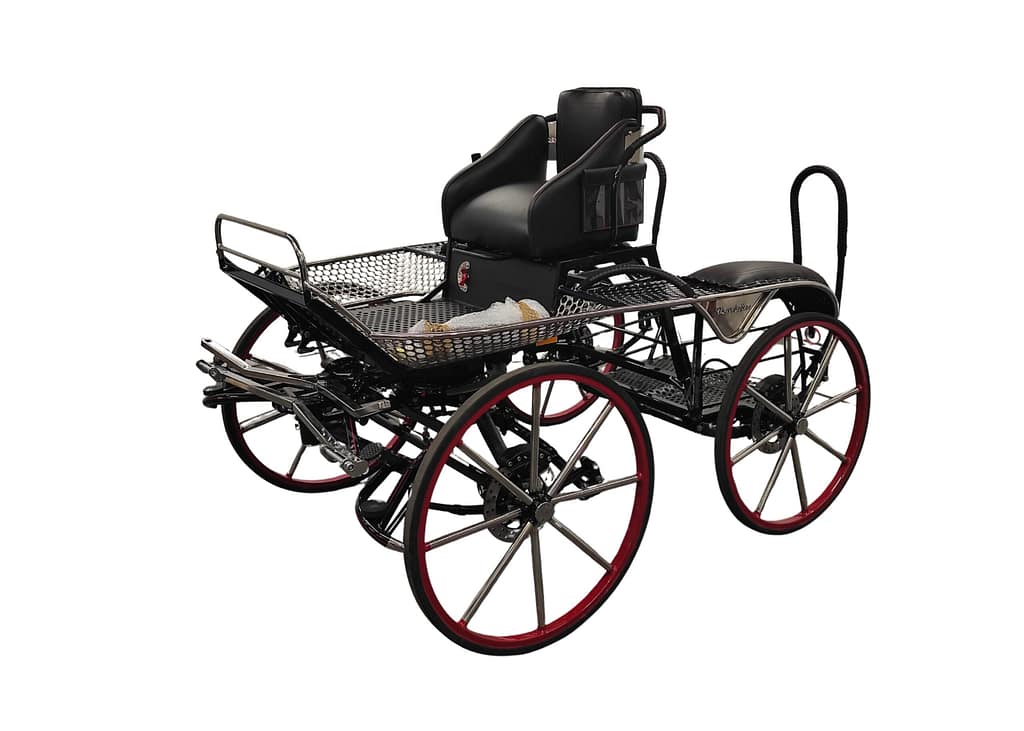

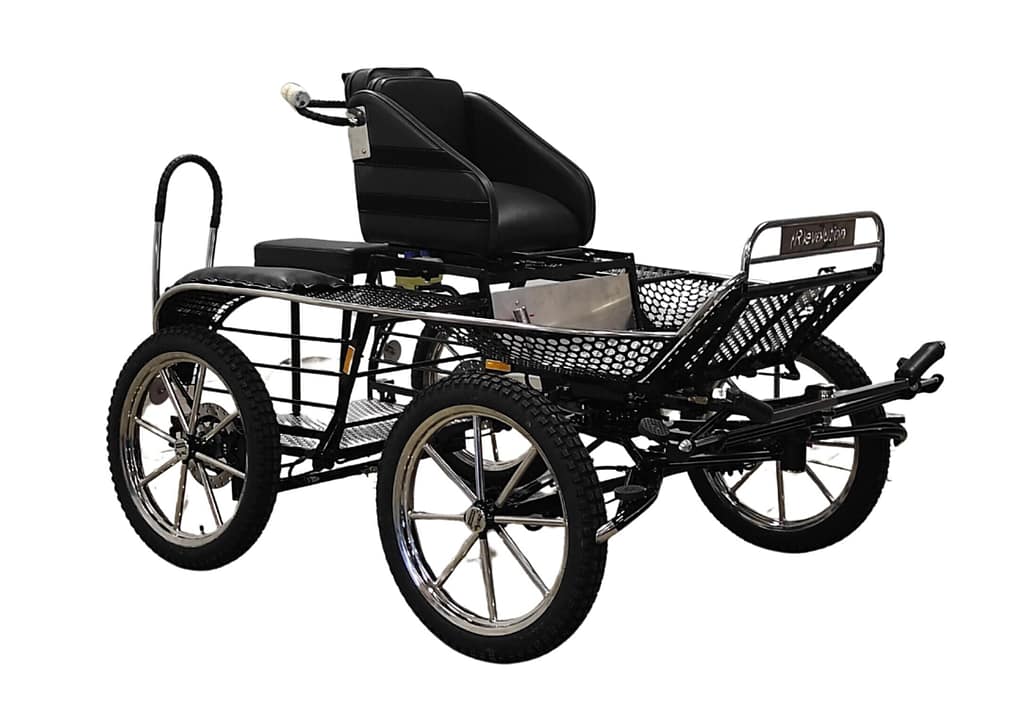

NHF Revolution Marathon Carriage

Pneumatic Front Wheel Sizes 18″-19″- 21″-23″-25″

Hard Front Wheel Size 60 cm-65 cm-70 cm-75 cm-80 cm

*Please consult with your expert dealer regarding size requirements as carriage size needed varies with height, type and number of horses. Carriages can be made for Singles and/or Pairs.

Features Included in Base Price:

• Standard Track Width: 126 cm (49.6 in.)
• Standard Suspension: Front – 3-Point Elliptic
• Standar Suspension Rear-Half Elliptic Spring
• Standard Straight Spokes 3/8”
• Standard Hydraulic Parking Brake
• Standard Rear BIT Brakes Optional Rear BIT Brakes.
• Marathon Short Seat
• Standard One-Level Back Step (Does not extend beyond rear wheels.)
• Standard Fixed Navigator Grab Bar Design
• Standard Painted 1″ Closed End Loop Shafts
• Stainless Steel Short Fenders
• Stainless Steel Dashboard

Optional Features:

• Optional Uli Seat – Slides left to center with folding passenger seat
• Optional Rear Elmex- increases weight approx 12 kg (26.5 lbs)
• Optional Articulated Axles
• Optional Delayed Steering- increases weight approx 10 kg (22 lbs.)
• Optional Fifth Wheel Brake Pedal, Navigator and/or Manometer Guage
• Optional Stainless Steel
• Contact us about other available options
